Create & Store SBOMs

This guide provides a quick start for creating, viewing, and storing Software Bill of Materials (SBOMs) in Anchore.

Understand SBOM Basics and Use Cases

Supported Industry-Standard Formats

Anchore supports the following industry-standard SBOM formats:

Anchore also supports the below rich/analysis document format for creating standard SBOMs.

Meet NTIA Requirements

Anchore-generated SBOMs adhere to the minimum required elements defined by the U.S. National Telecommunications and Information Administration (NTIA):

• Data Fields: Supplier name, component name, version, unique identifier (e.g., purl), and dependency relationship.
• Automation: Support for automated generation and updates.
• Practices & Processes: Covers frequency of generation, depth of component coverage, and accessibility.

Create SBOMs

Anchore can create SBOMs from container images or directly from a filesystem artifact.

Create and Store SBOM from a Container Image

Anchore uses its component analysis capabilities to inspect a container image and create a comprehensive SBOM.

Create and Store via UI

1. Add Image

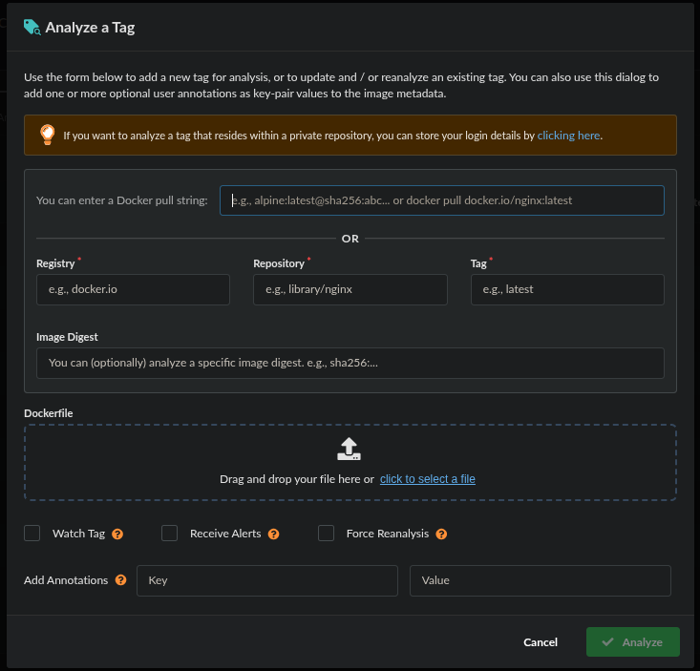

   In the Images tab, click Analyze Tag. You can either enter the Docker pull string for the container image you want to analyze or provide the registry, repository, and tag details in their respective fields. To learn more about adding a registry, see this guide.



2. Analyze Image

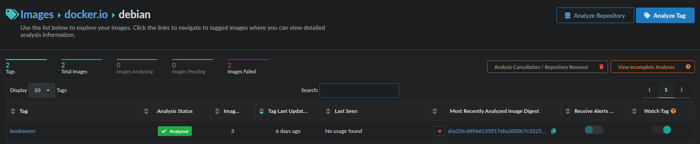

   After the image is added, Anchore automatically analyzes it and generates an SBOM as part of the analysis process.



3. View SBOM

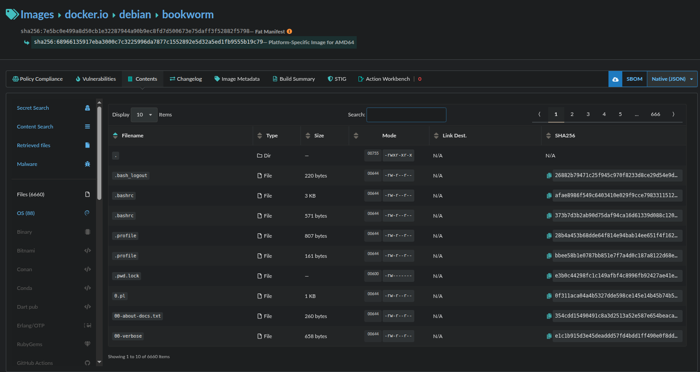

   To view the SBOM, go to the Images tab and open the image’s detail view. Select the image tag, then navigate to the Content tab on the tag report page. Here, you can browse the SBOM components organized by content type. If you need to download the SBOM, an export/download icon is available in the upper-right corner of the page.



4. Downloading the SBOM

   On the Images tab, select the repository or registry that contains the image for which you want to download the SBOM. This opens a page listing all available image tags.

   Click the tag of interest, then look to the upper-right corner of the screen for the Download icon. From the dropdown menu, choose your preferred SBOM format and click the Download icon to begin the download.



Create and Store via AnchoreCTL

Use the anchorectl command-line utility to generate an SBOM for a container image.

anchorectl image add <image_tag_or_digest>

Once the image analysis is completed, you can view the generated SBOM via anchorectl using:

anchorectl image sbom <image_tag_or_digest> -o json | jq .

Create and Store SBOM from a Filesystem (e.g. source code repository)

Create an SBOM from a local directory or set of files which is useful for codebases or non-containerized artifacts involves two steps.

1. Create the SBOM

You can create the SBOM by pointing anchorectl to the filesystem folder and running:

anchorectl syft <pathtosourcecode > > <name.json >

This command will create an SBOM ready for upload to Anchore.

2. Store the SBOM:

Once the SBOM is created, upload it to Anchore Enterprise for analysis using:

cat <sbomPATH.json > | anchorectl image add <image:tag > --from -

Download SBOM via Anchorectl

To download an SBOM that was added as an image, run

anchorectl image sbom <imageSHA > -o <format >

Where format is the SBOM output format you want to download.

Create and Store SBOMs as Imported SBOMs Using AnchoreCTL

You can also create an SBOM from a filesystem and manage it in Anchore Enterprise.

To do this, point anchorectl to the folder containing your source code:

anchorectl sbom add --from <pathtosourcecode > --name <mytestImage> --version $(date -u +%Y%m%d%H%M%S)

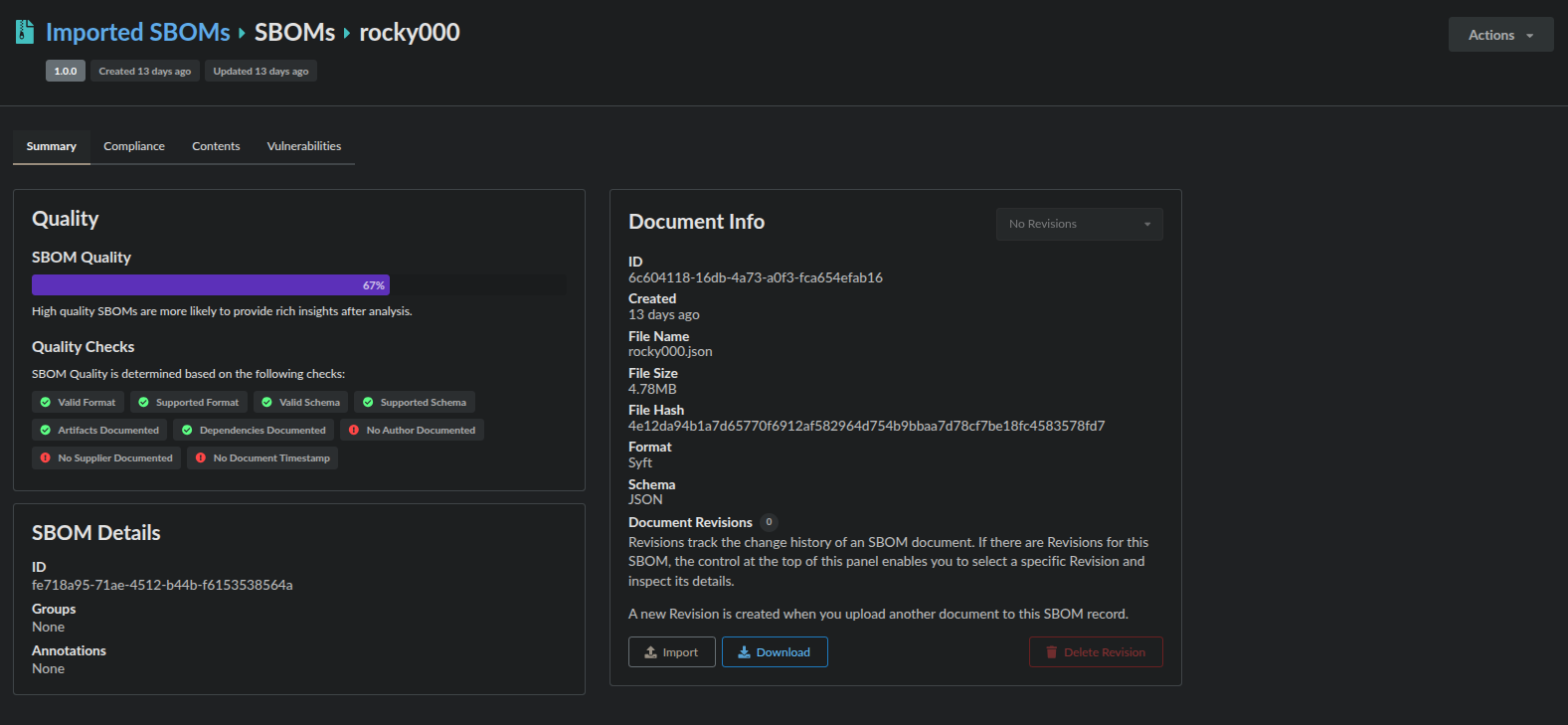

This command creates an SBOM and stores it under the Imported SBOMs section of the UI. You can view and download this SBOM by navigating to that section of the UI.
