Evaluate SBOMs Using Policies

This guide provides an example of how to scan an SBOM of a filesystem generated with AnchoreCTL.

Note: This does require a minimum of Anchore Enterprise 5.24 installed.

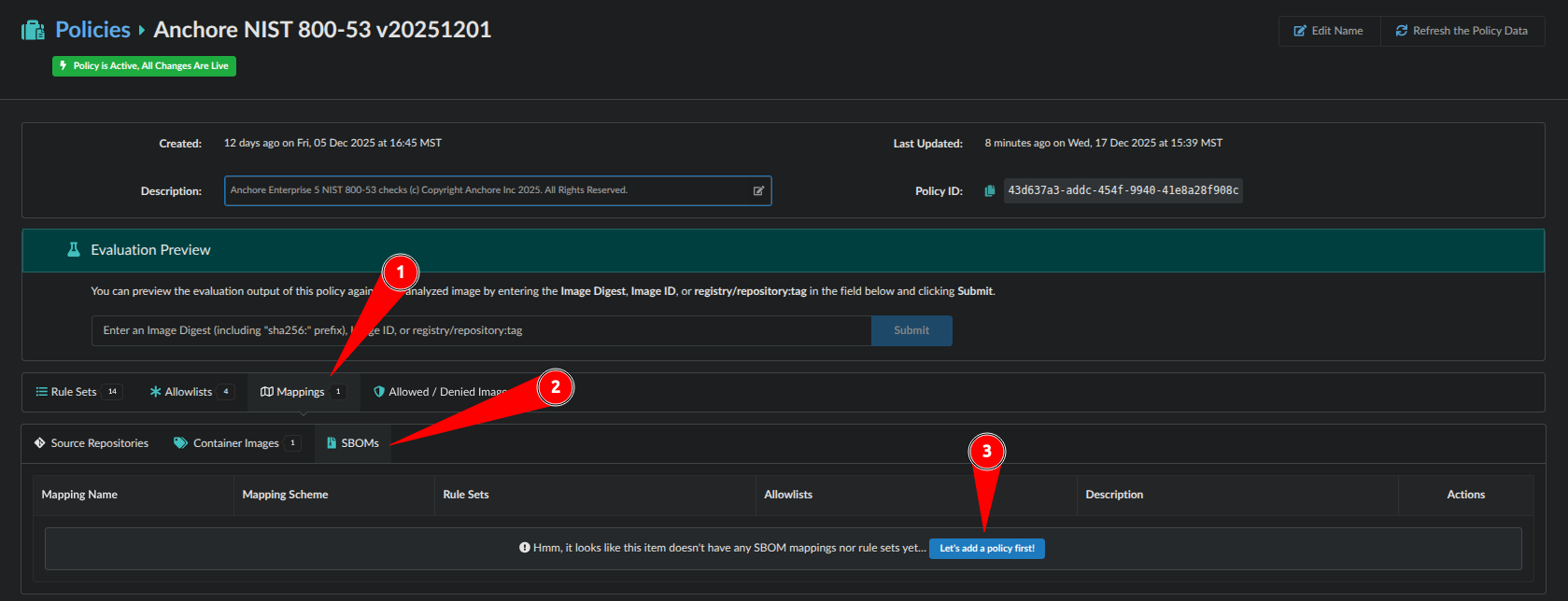

1. Create a new SBOM policy mapping:



   1. Within Policies navigate to Mappings
   2. Select SBOMs tab
   3. Click Let’s add a policy first!

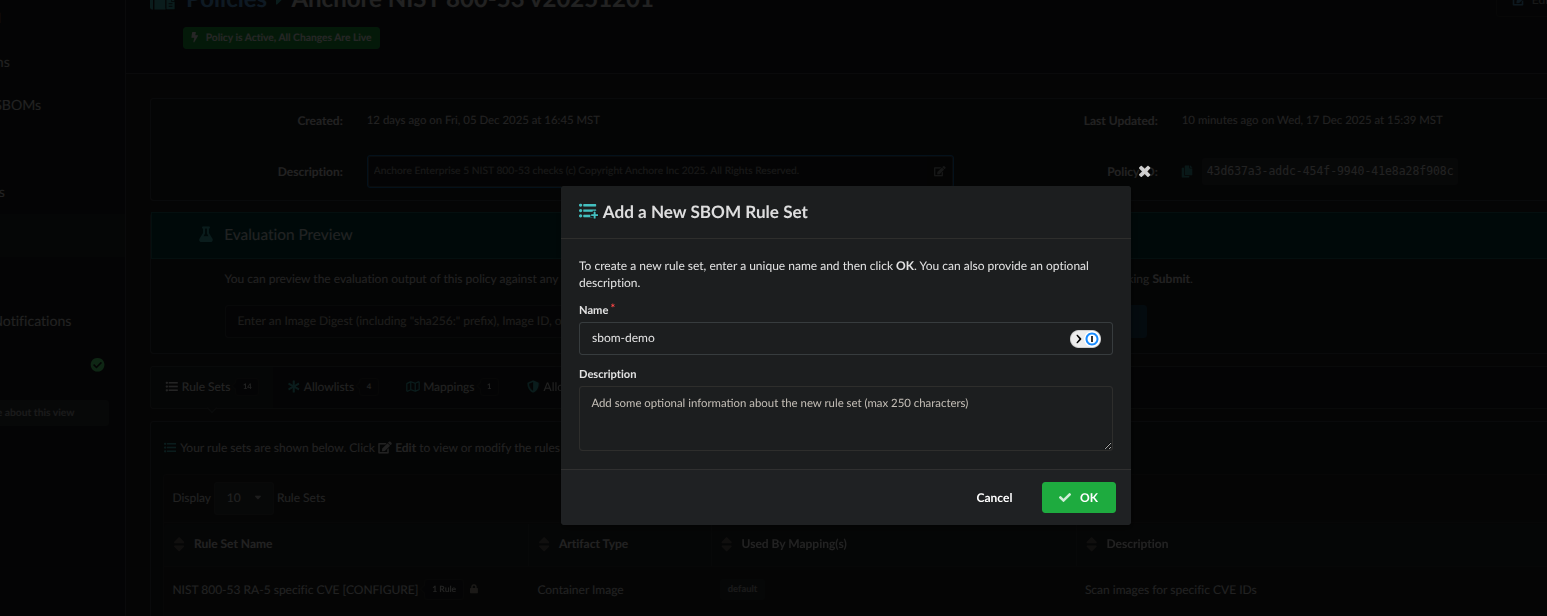

2. Now let’s name a rule set that maps to SBOMs which we will name: sbom-demo

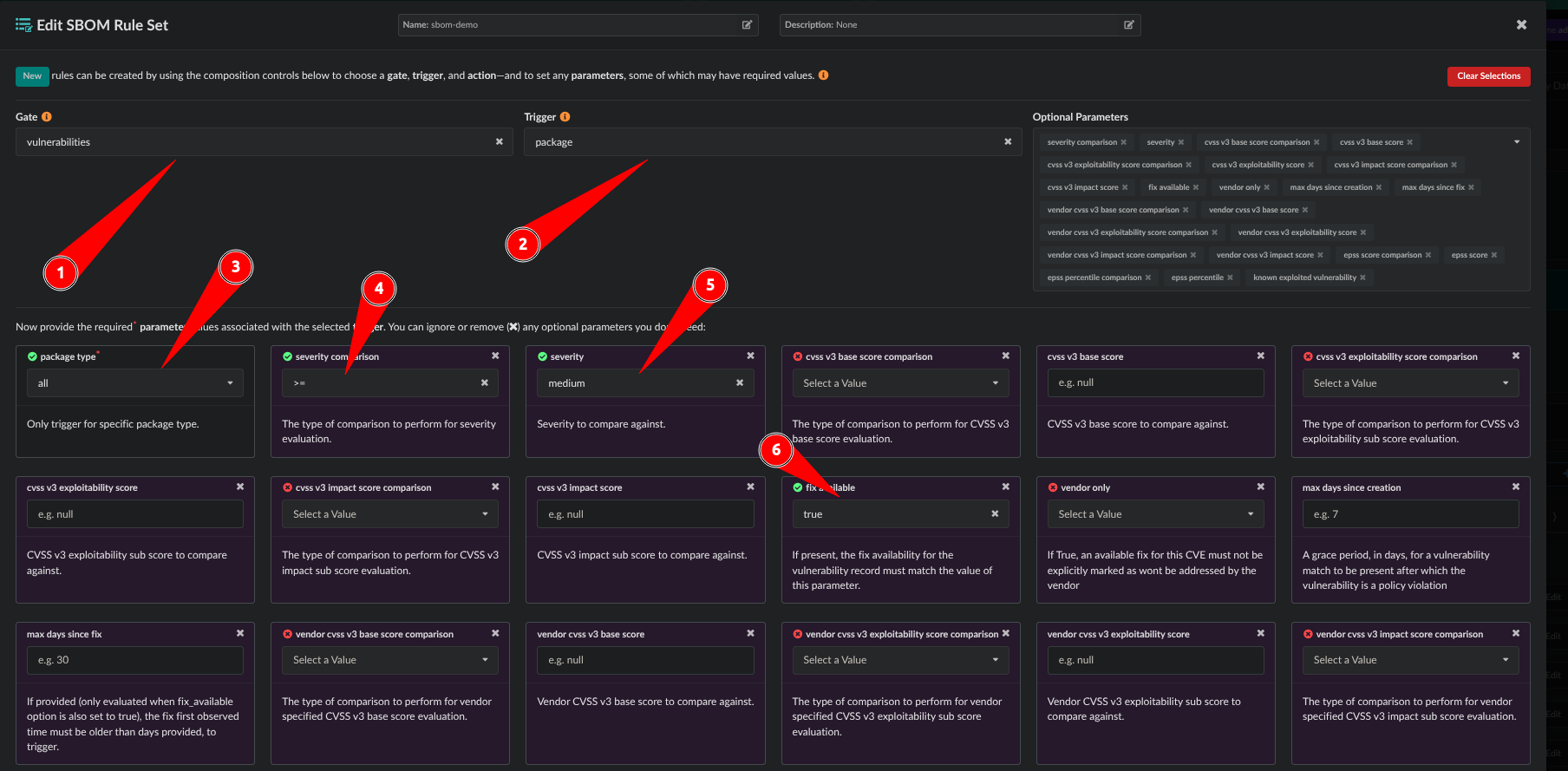

3. This will prompt us to make a rule set configuration:



   1. Gate: vulnerabilities
   2. Trigger: package
   3. package type: all
   4. severity comparison: >=
   5. severity: medium
   6. fix available: true

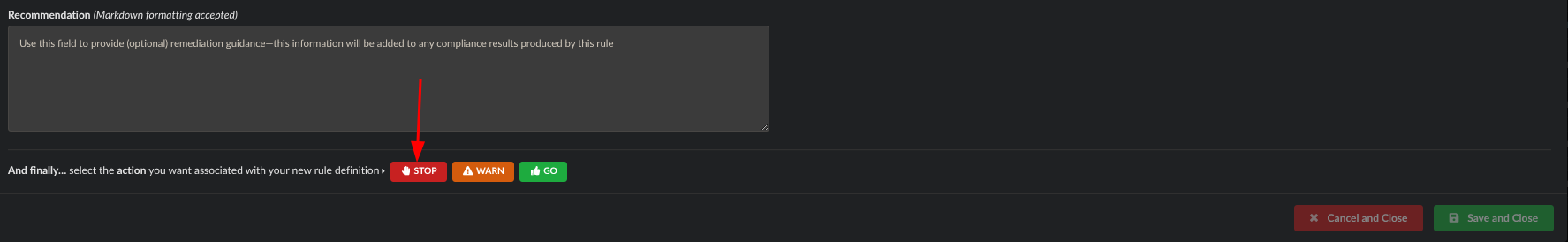

   Scroll down to the bottom and click the red STOP button.

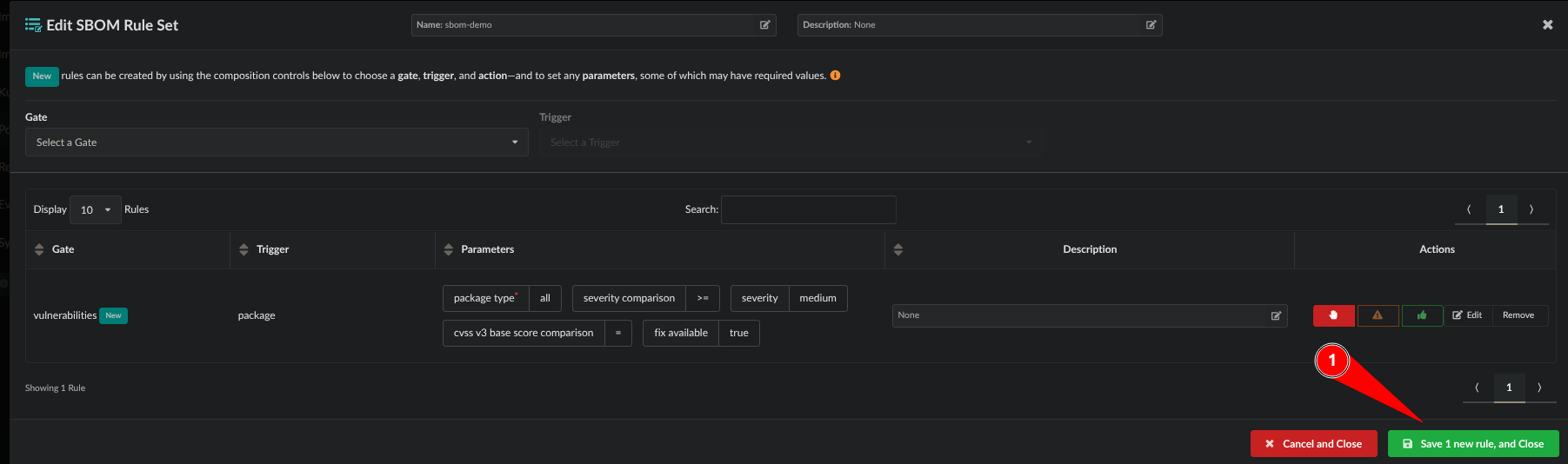

   It will now look like this and can you can save the policy:



   1. Click Save 1 new rule, and Close

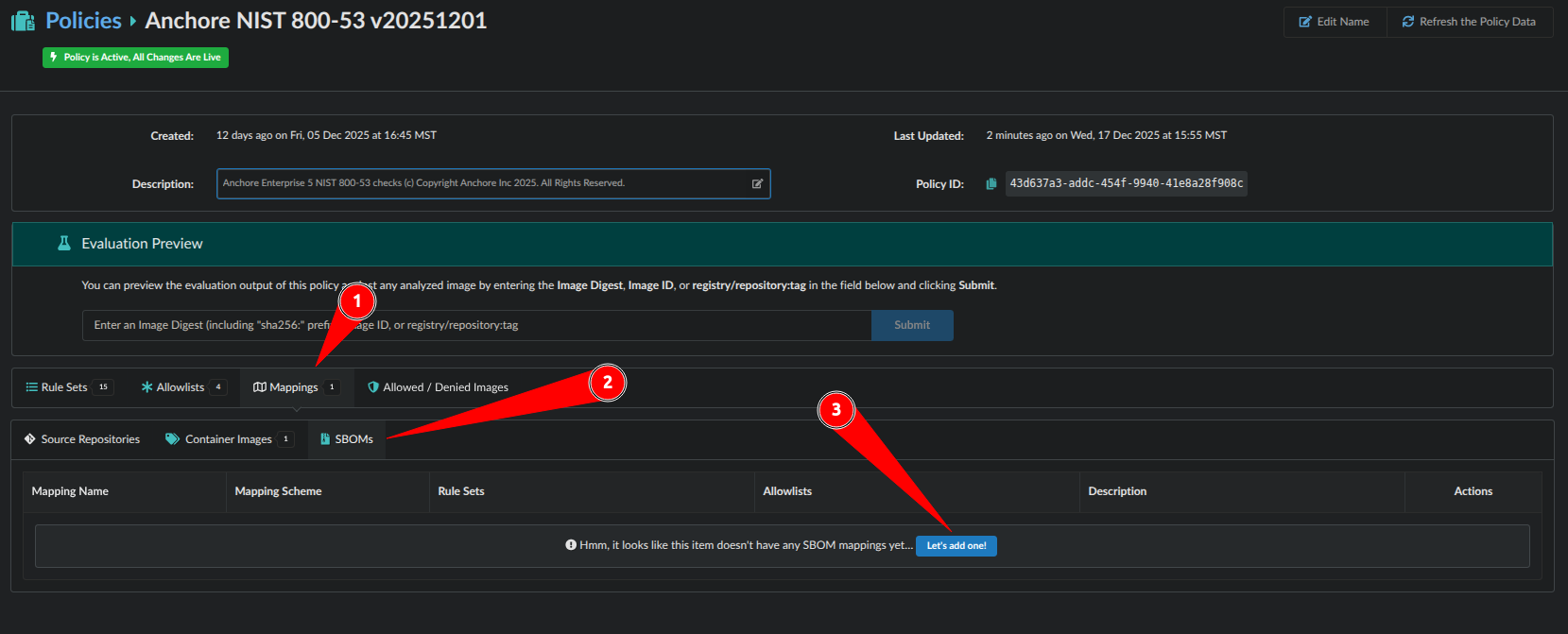

4. We have a rule set but now we need to make a rule map to SBOMs:



   1. Click Mappings
   2. Click SBOMs
   3. Click Let’s add one!

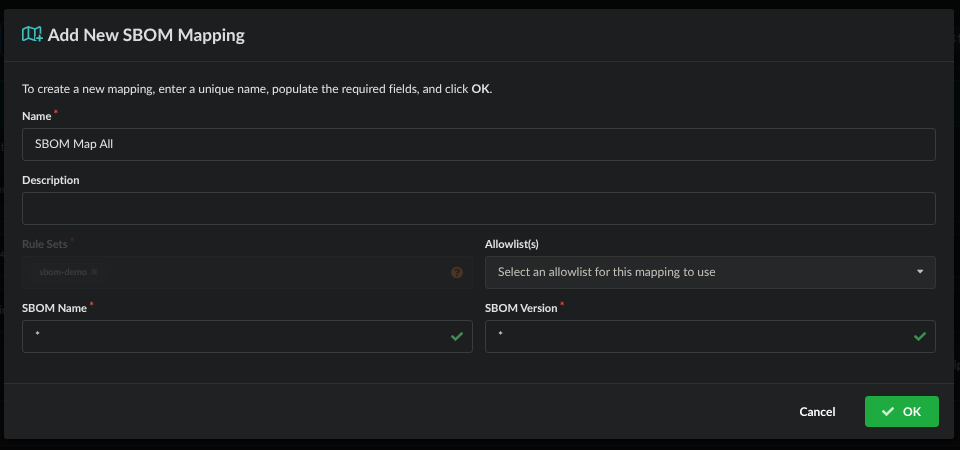

5. Now we will map the ruleset to SBOMs by giving it a name, the Rule Sets of ‘sbom-demo’ is applied and we will map this to all SBOM Names and Versions. Click OK when done.

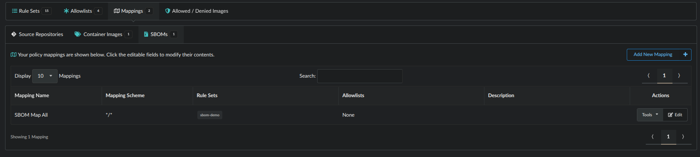

   The result will look like this:



6. SBOMs can be generated using the commands below. It works for applications, containers, files, filesystems, firmware, libraries, modules and mounted virtual disks. Here are is an example below:

   For the menu:

   anchorectl sbom add --help


   To generate a scan of a filesystem:

   anchorectl sbom add --from /usr/bin --name usr_bin_binaries --version 1.0 --type filesystem

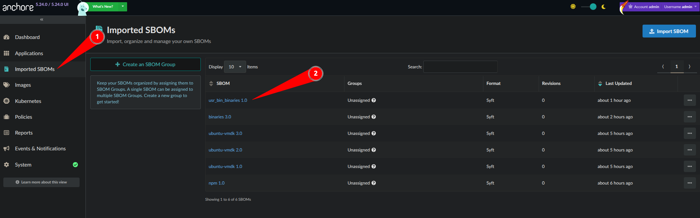

7. The SBOM is available via the UI here:

1. Navigate to Imported SBOMs
2. Click on the user_bin_binaries 1.0 object

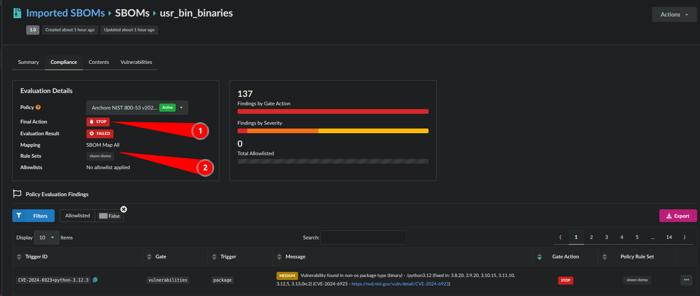

8. From here we can see that the SBOM has been analyzed against policy:

1. The Final Action was a STOP due to the policy rule map
2. The mapping is: SBOM Map All and Rule Sets: sbom-demo

Congrats!!! You have now mapped a policy to an SBOM
